Description

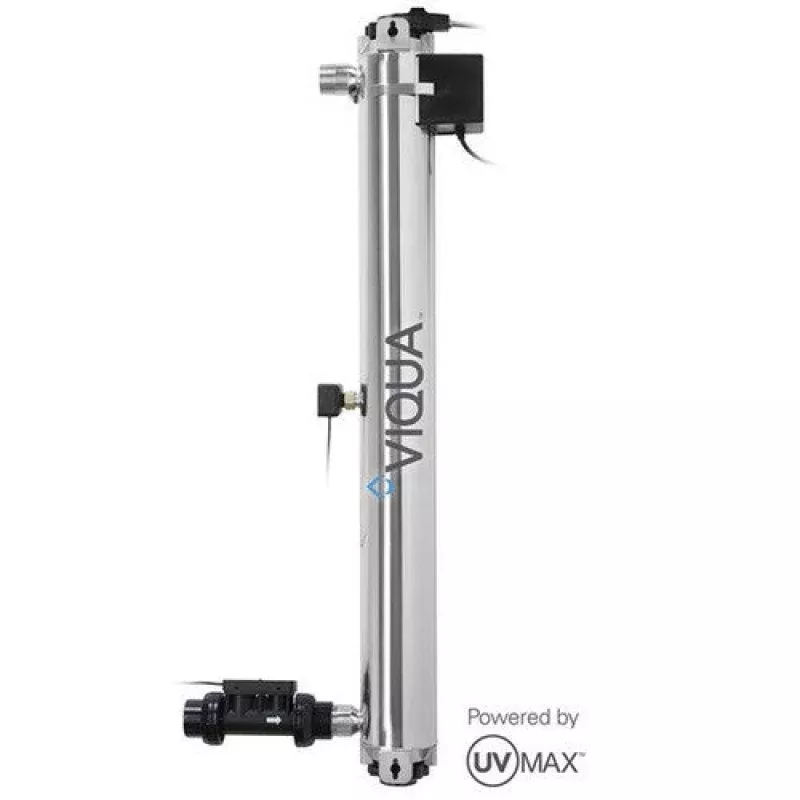

Viqua UVMax PRO 30 (650659) is an NSF 55 Class A certified drinking water disinfection system. With a flow rate of 30 gallons per minute, it is well suited for many regulated public drinking water applications.
Resources
- UVMAX PRO 30 Spec Sheet (650659)
- UVMAX PRO 30 Manual (650659)
Tech Specs
- Flow Rate: 30 U.S. GPM with integrated flow restrictor
- Installation Location: On main water line (Point of Entry)
- Installation Orientation: Vertical Only
- Plumbing Connectors: Combo 1.25″ Male NPT / 1″ Female NPT
- Chamber Material: 316L Stainless Steel
- Dimensions: Chamber 41 x 4 Power Supply 13″ x 6.5″
- Required Accessories: 5 Micron Pre-Filter
- Water Hardness: Suggested less than 7 grains per gallon (GPG)
- Water Iron Level: Suggested less than 0.3 ppm (mg/L)
In the Box
- 316 Stainless Steel Chamber
- Ultraviolet Lamp
- Quartz Sleeve
- UV Controller / Power Supply
- UV Sensor
- Flow Restrictor
- Cool Touch Kit
- Owners Manual
Warranty
- Lamp/Sleeve – 1 year
- Power Supply – 5 years
- UV Chamber – 10 years
