Double-acting pneumatic linear guided slide actuator with 3/4″ guide shaft + standard sealed recirculating ball bearings + magnetic piston and dovetail electronic sw. + stop collars – position sw. at extend and retract positions – 2″ bore – 10″ stroke – 4 x 3/8-16 UNC-2B tapped thru holes – 2 x 1/4″ NPT threaded pneumatic ports – rugged clear anodized Aluminium body / hard Chrome-plated 303 stainless steel piston rod / case hardened ground 52100 tubular steel guide shafts / Buna-N U-cup seals – tapped / thru / side tapped hole mounting
-30%

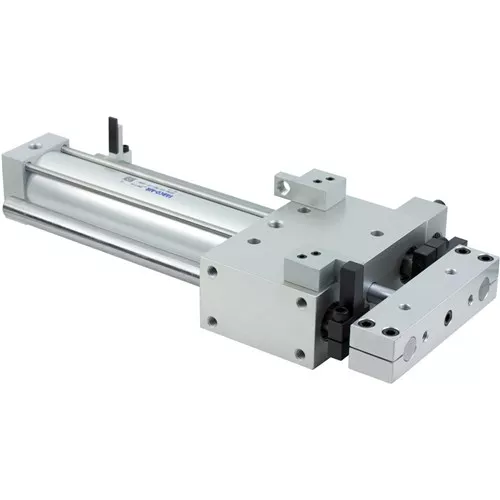

SE750-10.0-MS1-E73B-KB Fabco SE Series Pneumatic linear actuator
$640.75 Save:$281.00(30%)
Description
