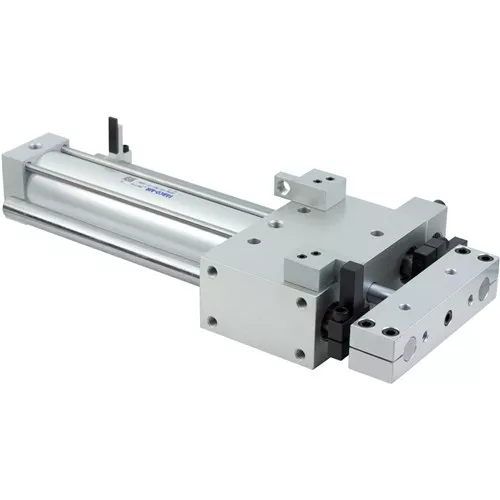

Double-acting pneumatic linear guided slide actuator with 5/8″ guide shaft + standard sealed recirculating ball bearings + magnetic piston and clamp-on electronic sw. – position sw. at extend and retract positions – 1-1/8″ bore – 4″ stroke – 4 x 1/4-20 UNC-2B tapped thru holes – 2 x 1/8″ NPT threaded pneumatic ports – rugged clear anodized Aluminium body / hard Chrome-plated 303 stainless steel piston rod / case hardened ground 52100 tubular steel guide shafts / Buna-N U-cup seals – tapped / thru / side tapped hole mounting
-33%
SE625-4.0-MS1-J73B Fabco SE Series Pneumatic linear actuator
$407.31 Save:$201.00(33%)
Description
