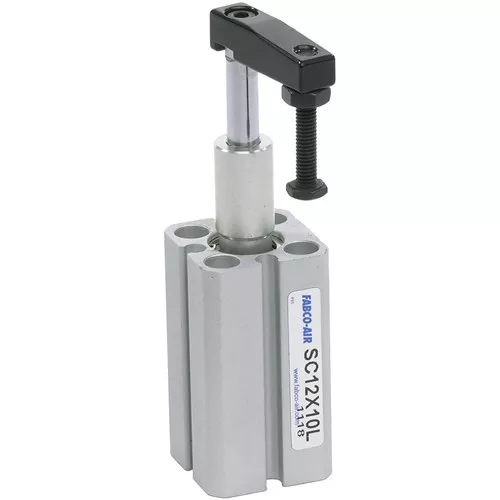

90 pneumatic swing clamp with single side clamping + magnetic piston – swing counter-clockwise when retracting – 80…100 swivel angle – 20mm bore – 10mm swing stroke / 20mm straight stroke / 30mm total stroke stroke – M8 x 1.25 female threaded rod-end – 2 x M5 threaded pneumatic ports – rated for +14…+158F / -10…+70C ambient – 50-100mm/s speed / 1.97-3.93″/s speed – hard anodized Aluminium body / hard Chrome-plated Carbon steel piston rod / Aluminium piston / standard Buna-N seals
-39%
SC20X20L Fabco Swing clamp Cylinders Pneumatic clamp
$117.06 Save:$75.00(39%)
Description
