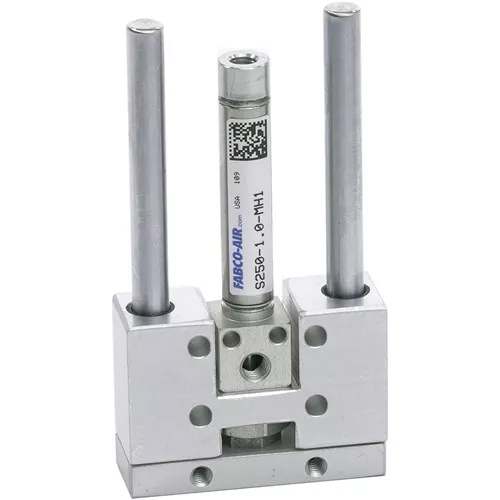

Double-acting pneumatic linear guided slide actuator with 1/2″ guide shaft + single bearing block + magnetic piston + dovetail electronic position sw. at extend and retract positions – 3/4″ bore – 1″ stroke – 4 x 10-24 UNC-2B tapped thru holes on front toolbar – 2 x 1/8″ NPT threaded pneumatic ports – 304 stainless steel body / 303 stainless steel piston rod / Buna-N U-cup seals – through-hole mounting
-43%
S500-1.0-MH1-E74B Fabco S Series Pneumatic linear actuator
$149.04 Save:$112.00(43%)
Description
