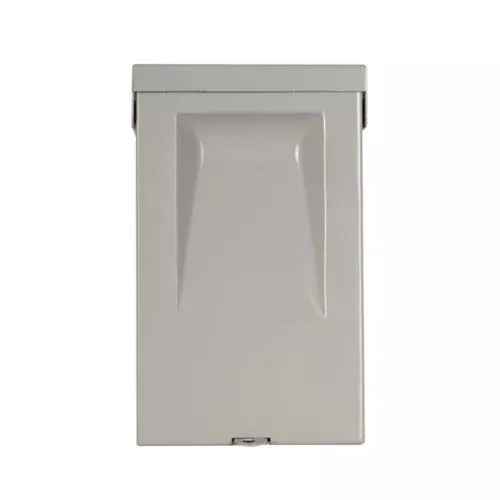

Eaton air conditioning disconnect, Fused pullout, 30 A, 120/240V, 10 kAIC, 14-3 Cu/Al 60°C or 75°C, NEMA 3R Galvanized Steel enclosure, 1.5 hp at 120V, 3 hp at 240V, Individual Packaging for Resale
Product Specifications
Type Fused pullout
Amperage Rating30A
Horsepower1.50 hp at 120 V, 3 hp at 240 V
Voltage rating120/240 V
Wire size14-3 AWG Cu/Al
ColorANSI 61 gray
EnclosureNEMA 3R
Enclosure materialGalvanized steel
Interrupt rating10 kAIC
